Unwind Roll Chart
A quick reference for roll orientation and print direction, especially when you're sending us printed film for toll slitting or rework.
Standard Unwind Positions
The chart below shows the 8 industry-standard unwind positions. If you're sending us printed rolls for toll slitting or rework, the unwind direction is a critical detail, so we can make sure your film is wound correctly to run on your equipment.

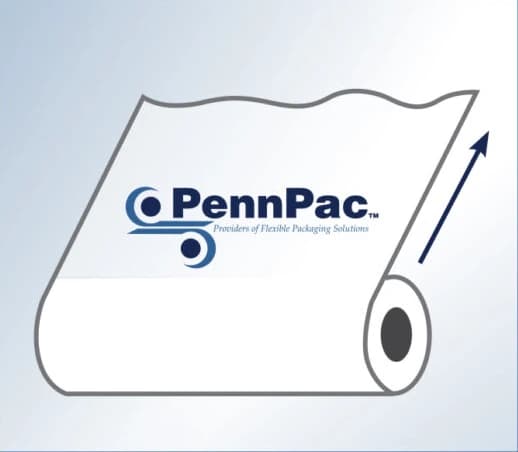

Outside Wound, Top Off First
Copy reads across the web; the top of the copy comes off the roll first.

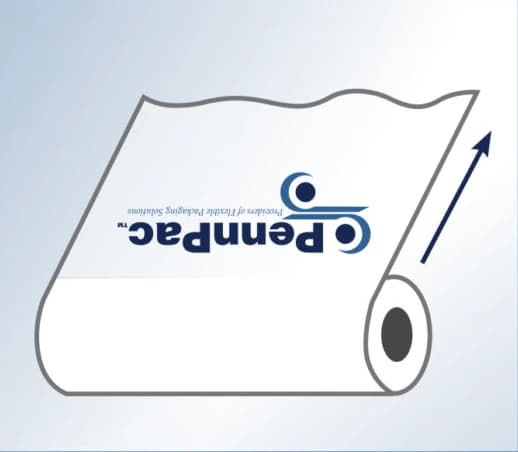

Outside Wound, Bottom Off First
Copy reads across the web; the bottom of the copy comes off the roll first.

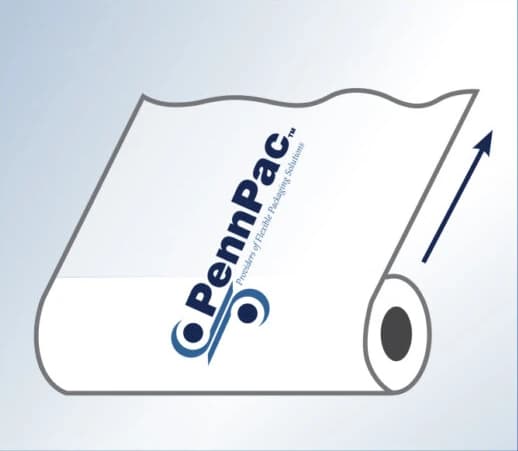

Outside Wound, Right Side Off First
Copy reads with the web; the right side of the copy comes off the roll first.

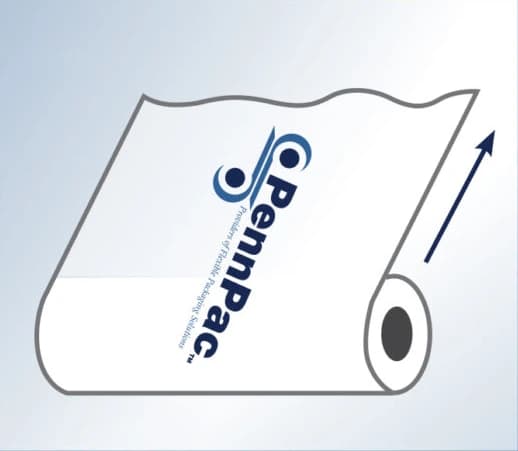

Outside Wound, Left Side Off First
Copy reads with the web; the left side of the copy comes off the roll first.

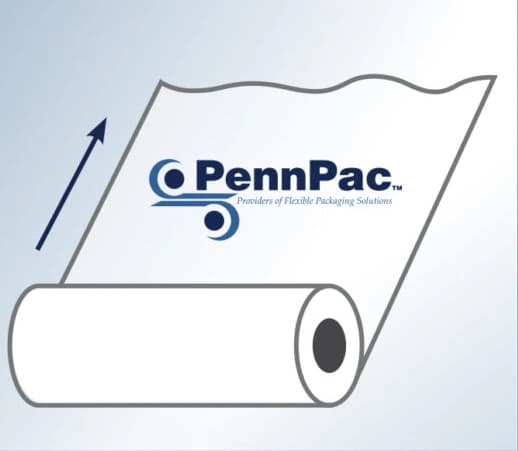

Inside Wound, Top Off First
Copy reads across the web; the top of the copy comes off the roll first.

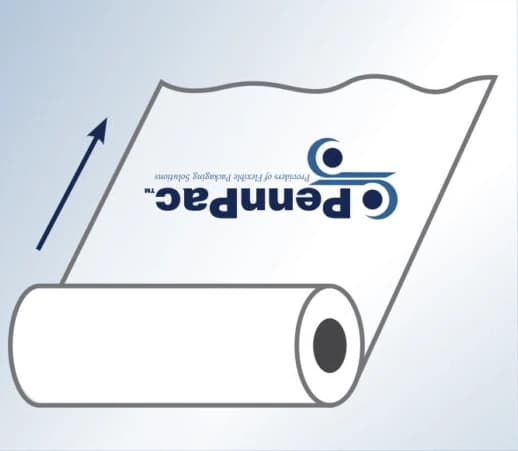

Inside Wound, Bottom Off First
Copy reads across the web; the bottom of the copy comes off the roll first.

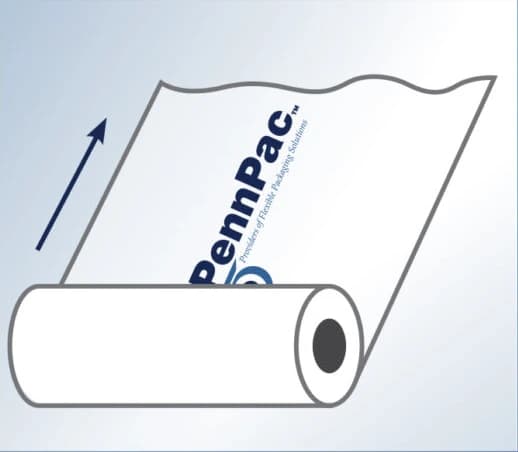

Inside Wound, Right Side Off First
Copy reads with the web; the right side of the copy comes off the roll first.

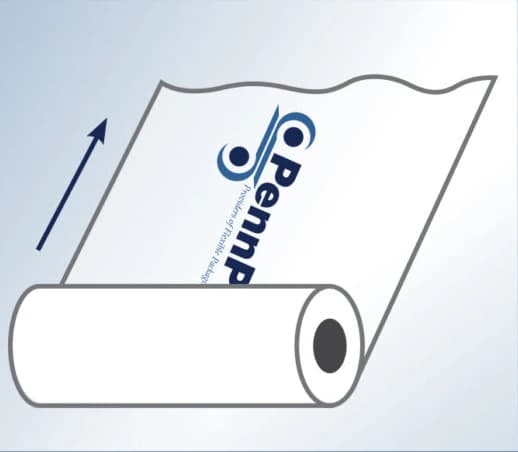

Inside Wound, Left Side Off First
Copy reads with the web; the left side of the copy comes off the roll first.
